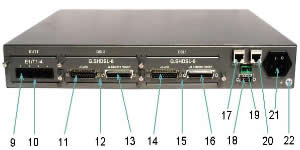

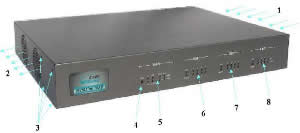

B-DSLink 16 Product View

1 Cooling Air Inlet
2 Cooling Air Outlet
3 Rack Mount Bracket Screws
4 ACO (Alarm Cut Off) Pushbutton
5 Main Indicators
6 DSL 1st Module Indicators
7 DSL 2nd Module Indicators
8 E1/T1 Module Indicators
9 Four RJ-48 E1/T1 Module Connectors
10 E1/T1 Module
11 DB-25M DSL 2nd Module Line Connector
12 DSL 2nd Module
13 DB-25F DSL 2nd Module Power Connector
14 DB-25M DSL 1st Module Line Connector
15 DSL 1st Module
16 DB-25F DSL 1st Module Power Connector
17 10 Base-T RJ-45 Management LAN Connector
18 RS-232 DB-9M Terminal Connector
19 Dry Contact NC-NO Alarm Wire Connector
20 10/100 Base-T RJ-45 Data LAN Connector
21 AC Power Connector and Power On/Off Switch
22 Chassis Shield Connection

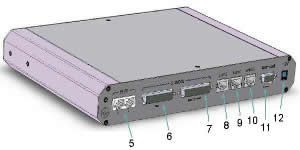

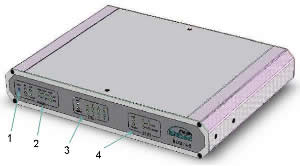

B-DSLink 8 Product View

1 ACO (Alarm Cut Off) Pushbutton
2 Main Indicators
3 DSL Indicators
4 E1/T1 Module Indicators
5 Four RJ-48 E1/T1 Connectors
6 DB-25M DSL Line Connector
7 DB-25M DSL Power Connector
8 RJ-45 Fast Ethernet LAN2 Connector
9 RJ-45 Fast Ethernet LAN1 Connector
10 RJ-45 Management 10Base-T Connector
11 RS-232 DB-9M Terminal Connector
12 12VDC Power Connector
