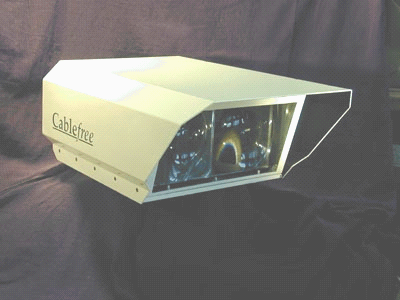

Cablefree Access - Product Overview

Cablefree Access Technical Data

Variants:
Range A500, A1000, A2000, A4000
Interfaces Various - 1Mbps to 155Mbps

Performance:
Range Systems for 500m, 1km, 2km & 4km
Data rates supported 64kbps to 155Mbps
Unfaded Bit Error Rate Better than 1x10-10 at 155Mbps
Fade Margin >20dB to overcome fog, rain, snow or shimmer
Link Availability Between 99.7% and 99.999% depending on distance and location

Unit Specification:
Size depends on variant
Weight depends on variant
Unit Power Consumption 75W 24Vdc
External Power Supply 90 - 250V ac auto-ranging, 48V dc option
Operating Temperature -20 to 60ºC

Optical sub-systems:
Operating Wavelength 980nm
Filtering Infra-red filter removes interference from daylight
Beam divergence Factory-preset to 0.5º or 0.25º
Optical classification Eye-safety Class 1M to IEC825 -1

Alignment aids:
Alignment sight Mechanical ‘gun-sight’ for general alignment
RSSI meter 10-step signal strength meter and audible tone
FM audio 2-way ‘voice link’ for speech and RSSI tones

Data Formats:
Multi-E1 for network access Upgradable from 1x E1 to 4xE1 (external mux - 16x E1) 75ohm Coax or 120ohm UTP connectors
High capacity single channel E2, E3 and STM-1 interfaces
Data Networking 10, 100Mbps Ethernet - UTP or Fibre optic interfaces
Other formats Contact us for complete solutions

Accessories & options
Installation Pan & Tilt mount, Wall, Tower, Pole & Tripod options
Diagnostics Bit-error-rate measurement, in-built system diagnostics, remote status monitoring
Software Comprehensive suite of software management tools
