B-DSLink 16 Product View

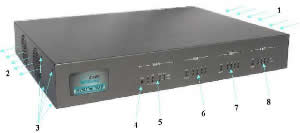

1 Cooling Air Inlet
2 Cooling Air Outlet
3 Rack Mount Bracket
Screws
4 ACO (Alarm Cut Off)
Pushbutton
5 Main Indicators
6 DSL 1st Module Indicators
7 DSL 2nd Module Indicators
8 E1/T1 Module Indicators

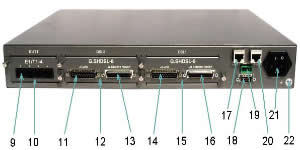

9 Four RJ-48 E1/T1 Module
Connectors
10 E1/T1 Module
11 DB-25M DSL 2nd Module
Line Connector
12 DSL 2nd Module
13 DB-25F DSL 2nd Module
Power Connector
14 DB-25M DSL 1st Module
Line Connector
15 DSL 1st Module
16 DB-25F DSL 1st Module
Power Connector
17 10 Base-T RJ-45
Management LAN Connector
18 RS-232 DB-9M
Terminal Connector
19 Dry Contact NC-NO
Alarm Wire Connector
20 10/100 Base-T RJ-45
Data LAN Connector
21 AC Power Connector and
Power On/Off Switch
